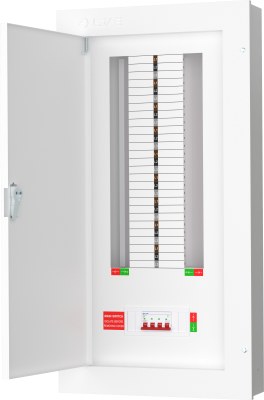

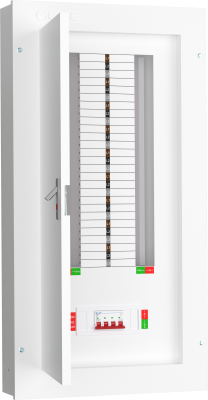

Live Electrical - TPN18-125 18 Way Three Phase Board c/w 125A Main Switch

Live Electrical - TPN18-125 18 Way Three Phase Board c/w 125A Main Switch

£259.99
£259.99
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Modern style finished in epoxy powder paint RAL7035.
  • Rated Voltage AC380V/415V 50/60Hz.
  • Maximum loading current to 125A/250A.
  • Section Neutral & Earth terminal are fitted both sides.
  • Quicker instillation with earth & neutral terminals adjacent to the MCBs/RCBOs.
  • Fully enclosed busbar system.
  • Complete shrouding for main incomer and link.
  • Removable gland plate for ease of cable entry.
  • Keyhole fixing for ease of wall mounting.
  • All versions supplied with Main Switch.
  • Complies with BS EN 61439-3.
  • Main switch Double Wiring Terminal.
  • 465mm (W) 321mm (W1) 884mm (H) 787mm (H1) 105mm (D)
